Setting Up [Scan Edge Position]

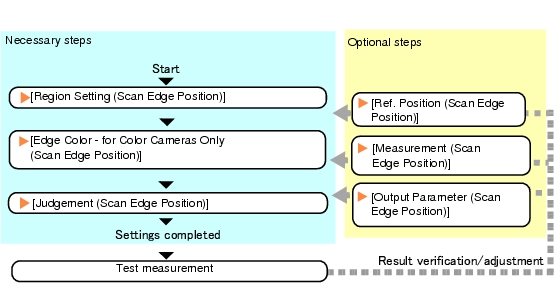

The setting procedure for [Scan Edge Position] is as follows:

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

In the Edit Flow window, tap [Scan Edge Position].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
In the "Item tab" area, tap [Region setting] and specify the measurement region.
[Region Setting (Scan Edge Position)]
For color cameras, tap [Edge color] in the "Item tab" area and set the basic color to detect as the edge.
[Edge Color - for Color Cameras Only (Scan Edge Position)]
Tap [Judgement] in the "Item tab" area, and set the judgement condition for OK.
[Judgement (Scan Edge Position)]
Important
- If you change an output parameter after setting the judgement condition, the measurement result changes. When you change an output parameter, reset the judgement condition as well.
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a test measurement.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When "NG" is displayed, verify measurement results and make adjustments if necessary.
Points on Test Measurement and Adjustment (Scan Edge Position)
