[Judgement (Scan Edge Position)]

Specify the range to be judged as OK.

In the "Item tab" area, tap [Judgement].

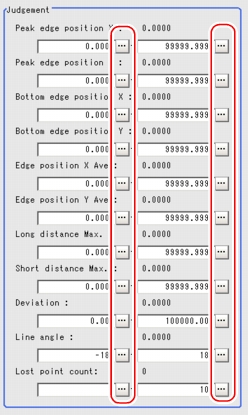

In the "Judgement" area, tap [...] and input a value for each item.

How to input a value:

User's Manual, "Inputting a Value"

Note

The values displayed in the individual fields are the measurement results of the displayed image. Take these values into consideration to determine the upper and lower limits.

Table: Measurement (Scan Edge Position) - Judgement
Setting Item		Set Value [Factory default]	Description

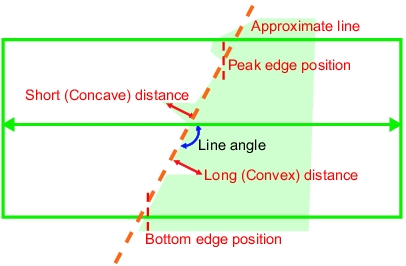

Peak edge position X	Upper	-99999.9999 to [99999.9999]	Specify the upper and lower limits of the peak edge position X judged to be OK.
Peak edge position X	Lower	[-99999.9999] to 99999.9999
Peak edge position Y	Upper	-99999.9999 to [99999.9999]	Specify the upper and lower limits of the peak edge position Y judged to be OK.
Peak edge position Y	Lower	[-99999.9999] to 99999.9999
Bottom edge position X	Upper	-99999.9999 to [99999.9999]	Specify the upper and lower limits of the bottom edge position X judged to be OK.
Bottom edge position X	Lower	[-99999.9999] to 99999.9999
Bottom edge position Y	Upper	-99999.9999 to [99999.9999]	Specify the upper and lower limits of the bottom edge position Y judged to be OK.
Bottom edge position Y	Lower	[-99999.9999] to 99999.9999
Edge position X Ave.	Upper	-99999.9999 to [99999.9999]	Specify the upper and lower limits of the average edge position X judged to be OK.
Edge position X Ave.	Lower	[-99999.9999] to 99999.9999
Edge position Y Ave.	Upper	-99999.9999 to [99999.9999]	Specify the upper and lower limits of the average edge position Y judged to be OK.
Edge position Y Ave.	Lower	[-99999.9999] to 99999.9999
Long distance Max.	Upper	0 to [dist (X_MAX, Y_MAX)]	Specify the upper and lower limits of the Long distance maximum judged to be OK.
Long distance Max.	Lower	[0] to dist (X_MAX, Y_MAX)
Long distance Min.	Upper	0 to [dist (X_MAX, Y_MAX)]	Specify the upper and lower limits of the Long distance minimum judged to be OK.
Long distance Min.	Lower	[0] to dist (X_MAX, Y_MAX)
Short distance Max.	Upper	0 to [dist (X_MAX, Y_MAX)]	Specify the upper and lower limits of the Short distance maximum judged to be OK.
Short distance Max.	Lower	[0] to dist (X_MAX, Y_MAX)
Short distance Min.	Upper	0 to [dist (X_MAX, Y_MAX)]	Specify the upper and lower limits of the Short distance minimum judged to be OK.
Short distance Min.	Lower	[0] to dist (X_MAX, Y_MAX)
Deviation	Upper	0 to [dist (X_MAX, Y_MAX)]	Specify the upper and lower limits of the deviation judged to be OK.
Deviation	Lower	[0] to dist (X_MAX, Y_MAX)
Line angle	Upper	-180 to [180]	Specify the upper and lower limits of the line angle judged to be OK.
Line angle	Lower	[-180] to 180
Lost point count	Upper	0 to [100]	Specify the upper and lower limits of the lost point count judged to be OK.
Lost point count	Lower	[0] to 100

*dist(X_MAX,Y_MAX)=sqrt(X_MAX*X_MAX+Y_MAX*Y_MAX)
