Scan Edge Position

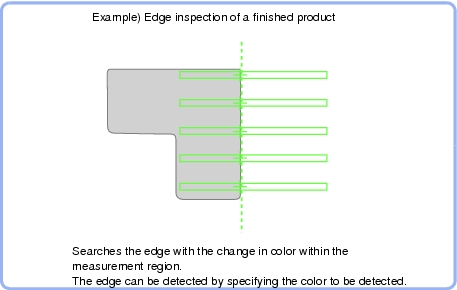

This processing item detects the position of the measured object by using the change in color within the measurement region. By dividing the measurement region, the following effects can be expected in comparison with ordinary edge position measurement.

Detailed information, such as the closest point or furthest point from the measurement start point, can be calculated.
The inclination or degree of unevenness of the measured object can be calculated.

Used for the following case

When calculating multiple edge positions of the measured object from statistical data

Item List for Scan Edge Position

Scan Edge Position items are explained below.

Table: Item List for Scan Edge Position
Item Name	Description
Region setting	This item specifies the region to be measured. [Region Setting (Scan Edge Position)]
Edge color specification (for color cameras only)	This item specifies an edge color information to be detected. [Edge Color - for Color Cameras Only (Scan Edge Position)]
Reference position	This item can be changed if necessary. The edge position that was measured when Region Setting was performed is already registered. [Ref. Position (Scan Edge Position)]
Measurement	This item changes the measurement parameters as necessary when the measurement result is unstable. The displayed items are different depending on whether your camera is a color or monochrome camera. Usually, the factory default value can be used. [Measurement (Scan Edge Position)]
Judgement	This item specifies the judgement condition for measurement results. [Judgement (Scan Edge Position)]
Output parameter	This item can be changed if necessary. Usually, the factory default value can be used. Use the Output parameter to specify how to treat the coordinate. [Output Parameter (Scan Edge Position)]
