ProcItem Setting Window

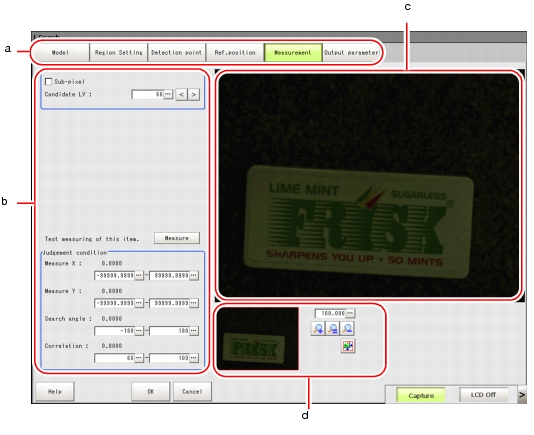

This window is used to set the Measurement parameters and judgement conditions, etc, of Processing Item. For window operations, see Operations of ProcItem Setting Window.

1. "Item tab" area
   Displays detailed setting items as tabs, for the processing unit selected in the Edit Flow window or in [Flow] of the "Control" area on the Main screen.
2. "Detail" area
   Displays and changes settings for the detailed setting item selected in the "Item tab" area.
3. "Image display" area
   To display the Coordinate, figure and images captured from camera, etc.
4. "Zoom browser" area
   Zooms in and out of the displayed image.
   Using Zoom Function

3D Processing Item Window

1. "Image display" area
   Displays the coordinates, figures and images captured from cameras, etc.
2. 3D camera switching button
   When tapping the button, the camera image in the "Image display" area is switched.
   The button number indicates the camera image currently displayed in the "Image display" area.
   Depending on the camera used, the buttons will change as described below.

   Table: 3D camera switching button

   Camera number	Buttons displayed
   When using camera input 0 and 1.	and are switched.
   When using camera input 2 and 3.	and are switched.
   When using camera input 0, 1, and 2.	, and are switched in order.

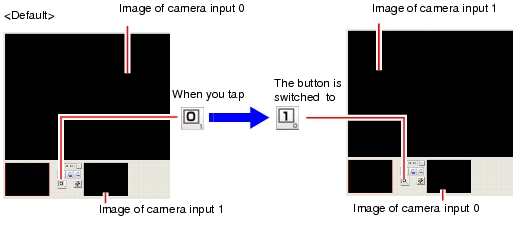

   Example) A display when camera input 0 and 1 are used.
   Tapping switches it to , and the image of camera input 1 is displayed in the "Image display" area.

   Tapping switches it to , and the image of camera input 0 is displayed in the "Image display" area.
3. "Sub image" Area
   A camera image other than the image displayed in the "Image display" area is displayed.
