[Region Setting (Scan Edge Position)]

Specify the measurement region for [Scan Edge Position] by using wide straight lines.

In the "Item tab" area, tap [Region setting].
When a measurement region is already registered, tap [Edit]. When no measurement region is registered, go to Step 3.
The Figure Setting area is displayed.
Specify the measurement area using Drawing Tools.
User's Manual, "Setting Figures"
In the "Figure setting" area, tap [OK].
The measurement range is registered and displayed in the "Image display" area.
When necessary, divide the drawn region into several parts.
Dividing the drawn region into several parts

For the subsequent operations, see

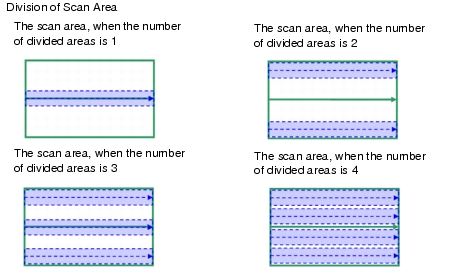

This can be set when changing the number of parts or the width of divided parts of the region.

In the "Area divide" area, tap [...] of each item and set values.
You can set it by tapping the left or right button.
How to input a value:User's Manual, "Inputting a Value"
By default, the number of divided areas is 5 and the width for each area is 5.
In the "Image display" area, the changed figure is redrawn.
The specified region is divided equally into the specified number of areas.
