Setting up [Gravity and Area]

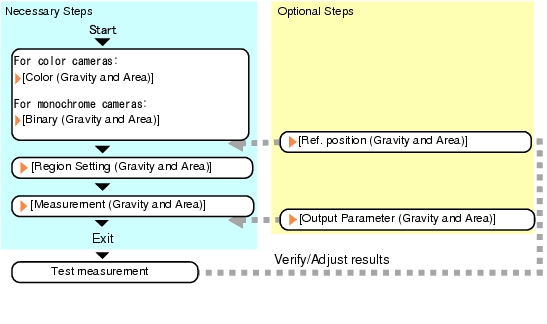

The setting procedure for [Gravity and Area] is as follows.

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

In the Edit Flow window, tap [Gravity and Area].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
For color cameras, in the "Item tab" area, tap [Color] to specify the color used for measurement.
[Color (Gravity and Area)]
For monochrome cameras, in the "Item tab" area, tap [Binary] to specify a color used for measurement.
[Binary (Gravity and Area)]
In the "Item tab" area, tap [Region setting] and specify the measurement region.
[Region Setting (Gravity and Area)]
In the "Item tab" area, tap [Measurement] and specify the judgement condition for OK.
[Measurement (Gravity and Area)]
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a measurement test.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When NG is displayed, please verify measurement results and make Adjust if necessary.
Points on Measurement Test and Adjustment (Gravity and Area)
