Gravity and Area

Select the color of the measurement objects, and the color area will be used for measurement.

Used for the following case

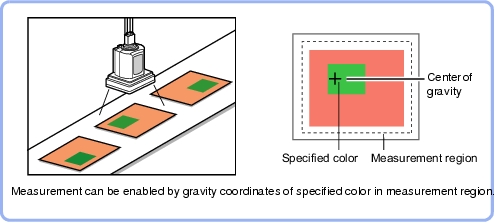

  • Label Deviation Measurement
    Color Area - Overview

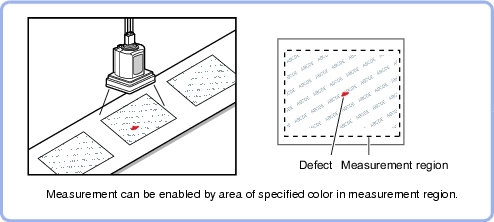

  • Defect and Defect measurement of the measurement objects whose appearances are not defined
    Color Area - Overview

List of Gravity and Area Items

Gravity and Area items are explained below.
Table: List of the Color Area Items
Menu Name
Description
Color
(for color cameras only)
The colors that are used to select sampling areas and edges. Since the color hue, color saturation, and brightness can be selected, then fine-tuning can be performed to colors.
[Color (Gravity and Area)]
Binary
(for monochrome cameras only)
This item specifies the binary level for converting 256-grayscale images input from the camera into binary images.
Converted white pixels are measured. Adjust the binary level so that the measurement object is converted to white pixels.
[Binary (Gravity and Area)]
Region setting
This item specifies the measurement region.
While the input image can be measurement as a whole, a quick and reliable measurement can be performed by set up the measurement region.
[Region Setting (Gravity and Area)]
Reference position
This item can be changed if necessary. Normally the central position of the registered model will be used as the reference.
[Ref. position (Gravity and Area)]
Measurement
This item specifies the judgement condition for measurement results. Specify the upper and lower limit values for the area and the gravity center X/Y.
Measurement parameters can be changed as needed to address unstable measurement results or to increase the processing speed. Normally the factory default value will be used.
[Measurement (Gravity and Area)]
Output parameter
This item can be changed if necessary. Usually, the factory default value can be used.
Use the Output parameter to specify how to treat the coordinate.
[Output Parameter (Gravity and Area)]
