Setting up [3D Edge Position]

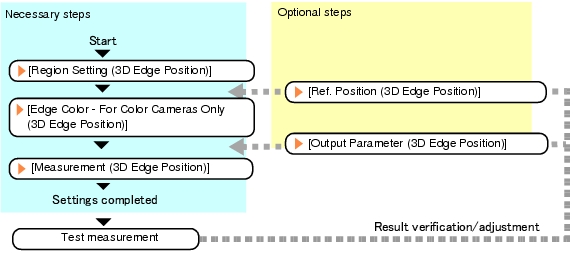

The setting procedure for [3D Edge Position] is as follows:

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

In the Edit Flow window, tap [3D Edge Position].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
In the "Item tab" area, tap [Region setting] and specify the measurement region.
[Region Setting (3D Edge Position)]
In the "Item tab" area, tap [Edge color] to specify the reference color to be detected as the edge.
[Edge Color - For Color Cameras Only (3D Edge Position)]
In the "Item tab" area, tap [Measurement] and specify the judgement condition for OK.
[Measurement (3D Edge Position)]
Important
- After setting up the measurement parameters, changing the output parameters will cause measurement results to vary accordingly. If the output parameters have been changed, re-specify the measurement parameters, too.
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a test measurement.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When "NG" is displayed, verify measurement results and make adjustments if necessary.
Points on Measurement Test and Adjustment (3D Edge Position)
