Setting up [Labeling]

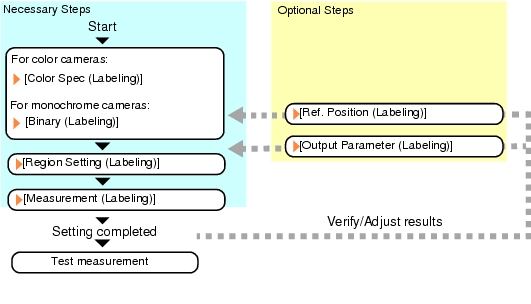

Color labeling can be set up as follows.

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

In the Edit Flow window, tap [Labeling].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
For color cameras, in the "Item tab" area, tap [Color spec] to specify the color used for measurement.
[Color Spec (Labeling)]
For monochrome cameras, in the "Item tab" area, tap [Binary] to specify a color used for measurement.
[Binary (Labeling)]
In the "Item tab" area, tap [Region setting] and specify the measurement region.
[Region Setting (Labeling)]
In the "Item tab" area, tap [Measurement] and specify the judgement condition for OK.
[Measurement (Labeling)]
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a measurement test.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When NG is displayed, please verify measurement results and make adjustment if necessary.
Points on Test Measurement and Adjustment (Labeling)
