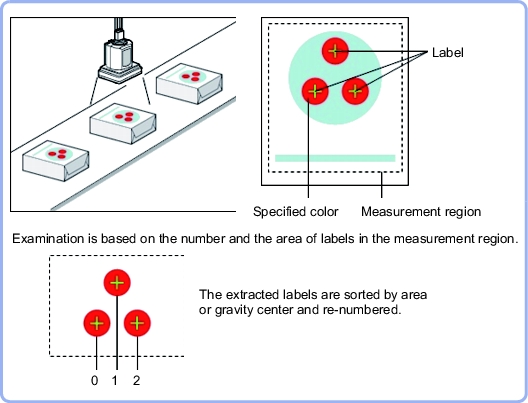

Color spec
(for color cameras only)

The colors that are used to select sampling areas and edges. Since the color hue, color saturation, and brightness can be selected, then fine-tuning can be performed to colors.
[Color Spec (Labeling)]

Binary
(for monochrome cameras only)

This item specifies the binary level for converting 256-grayscale images input from the camera into binary images.

Converted white pixels are measured. Adjust the binary level so that the measurement object is converted to white pixels.
[Binary (Labeling)]

Region setting

This item is used to set up the measurement region.
While the input image can be measured as a whole, a quick and reliable measurement can be performed by set up the measured range.
[Region Setting (Labeling)]

Reference position

This item can be changed if necessary. Normally the central position of the registered model will be used as the reference coordinate.
[Ref. Position (Labeling)]

Measurement

This item specify the judgement condition for measurement results. It specifies the upper and lower limit values for the number of labels, the area, and the gravity center X/Y.
Measurement parameters can be changed as needed to address unstable measurement results or to increase the processing speed. Usually, the factory default value can be used.
[Measurement (Labeling)]

Output parameter

This item can be changed if necessary. Usually, the factory default value can be used.
Use the Output parameter to specify how to treat the coordinate.
[Output Parameter (Labeling)]
