[Color Spec (Labeling)]

In the "Color specification setting" area, specify the reference color.

Table: Color Spec (Labeling) - Color Specification Setting
Item		Set Value [Factory defaults]	Description
H	Max.	0 to [359]	Specify the color phase (difference of color hues).
H	Min.	[0] to 359	Specify the color phase (difference of color hues).
S	Max.	0 to [255]	Specify color saturation (difference of color saturations).
S	Min.	[0] to 255	Specify color saturation (difference of color saturations).
V	Max.	0 to [255]	Specify the brightness (difference of brightness).
V	Min.	[0] to 255	Specify the brightness (difference of brightness).
Automatic		Checked [Unchecked]	When checked, each range of hue, saturation, and value are set automatically.
Color inv.		Checked [Unchecked]	When checked, areas with a specified color from the image region's area are not measured.

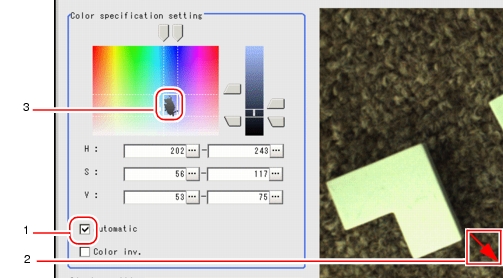

When specifying color using the camera input image

Make sure the "Automatic" option is checked.
In the "Image display" area, specify the color area you want to detect by dragging the cursor from the upper left corner to the lower right corner of that area.
The color of the specified area is automatically set.

When specifying color in the "Color setting" area

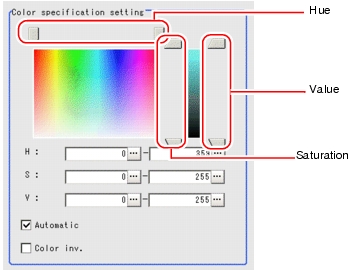

In the "Color specification setting" area, drag the sliders for "H" (Hue), "S" (Saturation), and "V" (Value).

Specifying values manually:

In the "Color specification setting" area, tap [...] for "H", "S", and "V" and specify each value.
For how to input value, see

If necessary, in the "Display setting" area, set up display settings for the images displayed in the "Image display" area.

Table: Color Spec (Labeling) - Display Setting
Setting Options		Set Value [Factory defaults]	Description

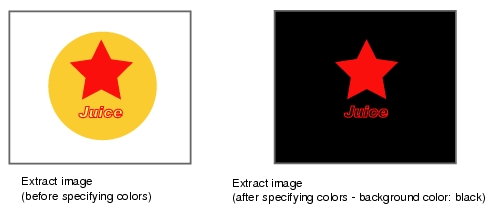

Extract image		[Checked] Unchecked	The sampled image obtained through the selected color will be displayed in the "Image display" area.
	BG	[Black] White Red Green Blue	The area outside the image area which is filled by selected colors.
