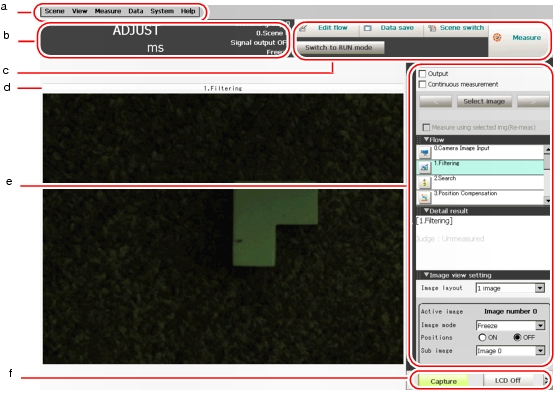

Main Screen (ADJUST window)

1. Menu bar
   To select the menu used for measurement-related operation or setting.
   Main Screen Menu
2. "Measurement information display" area

   1. Overall judgement
      Displays the result of the overall judgement of a scene ([OK]/[NG]).
      The judgement result for each processing item is displayed in each flow unit of the "Control" area.
   2. Process time
      Displays the time required for the measurement process.
   3. Status display
      Displays the scene group number, the scene number, the external output status, and the image mode for the currently displayed content.
3. Toolbar
   Some common functions are reserved in Toolbar.
   • Edit flow
     Displays the Edit Flow window. In the displayed window, you can add, delete, or edit processing units.
     What is Scene
     Edit Flow Window
   • Data save
     Setting data is saved into flash memory in the controller. Scene group data can also be saved to USB memory. Modified settings must be saved.
     Saving Setting Data in the Controller's Memory [Data save]
   • Scene switch
     To switch a scene group or a scene.
     Changing Steps (Scene Switch)
   • Measure/Stop meas.
     Starts/stops measurement. The measurement is performed in accordance with [Test measurement] settings in the "Control" area.
     Test Measurement before Actual Operation
   • Switch to RUN mode
     Switches the display to the RUN window.
     Edit Flow Window

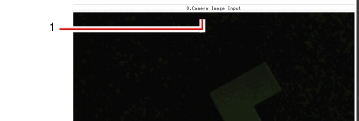

4. "Image display" area
   Displays the measured image.

   1. ProcItem setting button
      Displays the name of the processing item for the currently selected processing unit. When tapping the button, the ProcItem Setting window is displayed.
5. "Control" area

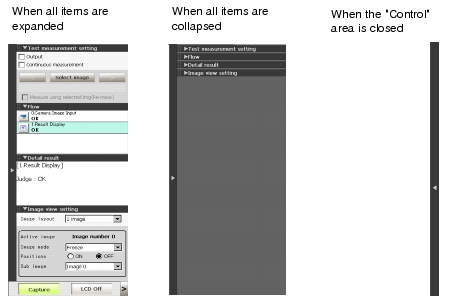

   Displays "Test measurement setting", "Flow", "Detail result", and "Image view setting". You can expand or collapse each item by tapping its panel.

   • Test measurement setting
     Sets up test measurement or re-measurement using a previously input image.
     Test Measurement before Actual Operation
   • Flow
     Displays the measurement flow for the scene used for measurement. Tap a button for each unit to display the ProcItem Setting window and change the processing unit settings.
     Operations of ProcItem Setting Window
     The size of the processing unit buttons can be switched by tapping [Display] - [Display the enlarged measurement flow].
   • Detail result
     Displays with the text, detailed measurement results of the processing units selected in the measurement flow.
   • Image view setting
     Specifies the display settings for the "Image display" area. Image Display Setting
6. Measurement Manager bar

   1. [Capture]
      Saves the content displayed on the monitor as an image.
      For settings and operation of [Capture], see Setting the Destination to Save Capture Image [Screen capture setting].
   2. [LCD Off]
      Turns off the power of the LCD monitor. For settings and operation of [LCD Off], see Powering Off LCD.
