Main Screen (RUN window)

This is the window used during operation.

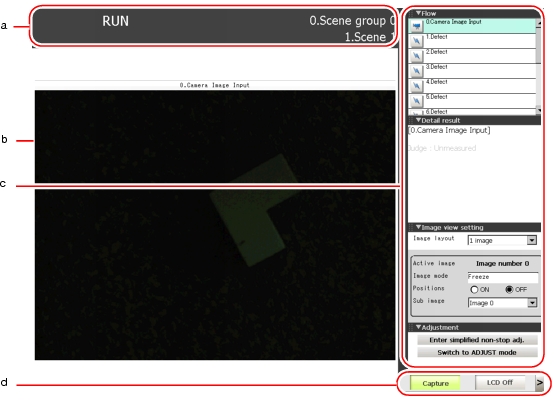

Figure of the Main screen (the Operation window)"Measurement information display" area "Image display" area "Control" area "Flow detail display" area Measurement manager bar
  1. "Measurement information display" area
    Figure of the "Measurement information display" area on the Main screenProcess time Measurement result Process time
    1. Overall judgement
      Displays the result of the overall judgement of a scene ([OK]/[NG]).
      The judgement result for each processing item is displayed in each flow unit of the "Control" area.
    2. Disp mode
      The current image mode, [Through], [Freeze], or [Last NG], is displayed.
    3. Scene group name and Scene name
      Displays the scene group number and the scene number.
  2. "Image display" area
    Displays the measured image.

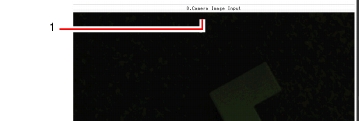

    Figure of the "Image display" areaDisp mode
    1. ProcItem setting button
      Displays the name of the processing item for the currently selected processing unit. If this button is tapped during simplified non-stop adjustment, the ProcItem Setting window is displayed.
  3. "Control" area

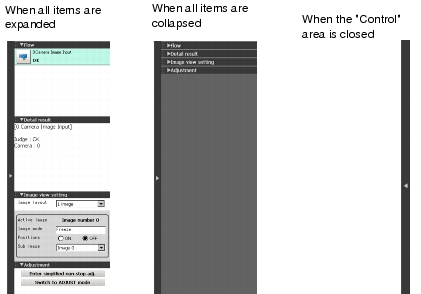

    Displays "Flow", "Detail result", "Image view setting", and "Adjustment". You can expand or collapse each item by tapping its panel.
    "Control" area
    • Flow
      Displays the measurement flow for the scene used for measurement. When a simple non-stop adjustment is executed, if you tap a button (icon) of each unit (icon), judgement conditions are displayed in of the ProcItem Setting window, and the settings can be changed.
      Changing Judgement Condition of a Unit during Measurement
    Important
    • When simplified non-stop adjustment is not being performed, the ProcItem Setting window is not displayed even if a button for a processing unit is tapped.
    In the RUN window, the size of processing unit buttons cannot be changed. To change the size of processing unit buttons of the RUN window, set the size of buttons in the ADJUST window, select "Data save", and then switch back to the RUN window.
    • Detail result
      Displays with the text, detailed measurement results of the processing units selected in the measurement flow.
    • Image view setting
      Specifies the display settings for the "Image display" area.Image Display Setting
    • Adjustment
      Starts and stops simplified non-stop adjustment, and switches to the ADJUST window.
  4. Measurement Manager bar
    Measurement manager barMenus Capture
    1. [Capture]
      Saves the content displayed on the monitor as an image.
      For settings and operation of [Capture], see Setting the Destination to Save Capture Image [Screen capture setting].
    2. [LCD Off]
      Turns off the power of the LCD monitor. For settings and operation of [LCD Off], see Powering Off LCD.
