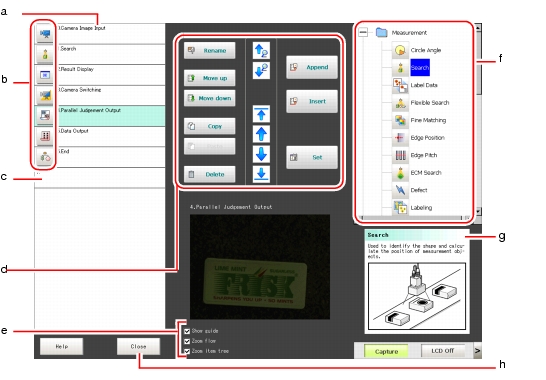

Edit Flow Window

This window is used to create a scene (measurement flow). For scenes, see What is Scene.

1. Unit list
   Lists the processing units included in the flow. For each processing unit, ProcItem setting button and the name of the processing unit are displayed.
   You can create a flow for a scene by adding processing items in the unit list.
   Creating a New Scene
2. ProcItem setting button
   Displays the ProcItem Setting window for each processing unit having a detailed set up.
3. End marker
   Indicates the end of the flow.
4. Flow editing buttons
   • Search up/Search down (/)
     Selects a processing unit by searching a processing item name.
     Selecting the Processing Unit to Edit
   • Select top/Select bottom (/)
     Selects the processing unit at the top or bottom of the flow.
     Selecting the Processing Unit to Edit
   • Select above/Select below (/)
     Selects the processing unit located one above or one below the currently selected processing unit.
     Selecting the Processing Unit to Edit
   • Rename
     Displays a window to rename the selected processing unit.
     Renaming a Processing Unit
   • Move up/Move down
     Moves the selected processing unit upward or downward.
     Moving a Processing Unit
   • Copy
     Copies the selected processing unit.
     Copying and Pasting a Processing Unit
   • Paste
     Pastes the copied processing unit immediately before the selected processing unit. You can only paste the unit right after the copy action without any intervening operations.
     Copying and Pasting a Processing Unit
   • Delete
     Deletes the selected processing unit.
     Deleting a Unit
   • Append
     Adds a processing unit to the bottom of the flow.
     Appending a Processing Unit at the Bottom
   • Insert
     Inserts a new processing unit immediately before the selected processing unit.
     Inserting a Processing Unit
   • Set
     Displays the ProcItem Setting window for the selected processing unit.
     Setting Details of a Processing Unit
5. Display options
   • Show guide
     When checked, the explanation for the processing items (Guide) is displayed.
   • Zoom flow
     When checked, the flow in Unit list is displayed using large icons.
   • Zoom Item tree
     When checked, Processing item tree is displayed using large icons.
6. Processing item tree
   This is an area for selecting a processing item to be added to the flow. Processing items are classified by type and displayed as a tree. If a plus sign "+" for each item is tapped, the contents under the item is expanded. If a minus sign "-" for each item is tapped, the contents under the item collapse.
7. Guide
   Shows an explanation for the processing item selected in the processing item tree. This is for your reference to select a processing item. To display the guide, check "Show guide" in Display options.
8. [Close]
   Returns to the Main screen.
