Setting up [Edge Position]

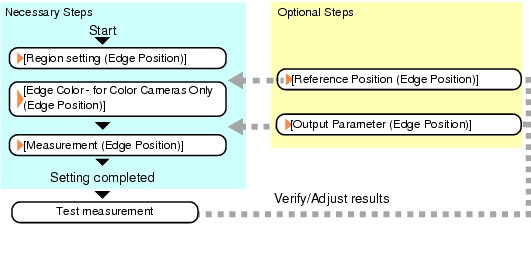

Set up Edge position with the following steps.

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

Tap [Edge position] in the Edit Flow window.
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
In the "Item tab" area, tap [Region setting] and specify the measurement region.
[Region setting (Edge Position)]
In the "Item tab" area, tap [Edge color] to specify the reference color to be detected as the edge.
[Edge Color - for Color Cameras Only (Edge Position)]
In the "Item tab" area, tap [Measurement] and specify the judgement condition for OK.
[Measurement (Edge Position)]
Important
- After setting up the measurement, changing the output parameters will cause measurement results to vary accordingly. If the output parameters have been changed, re-specify the measurement, too.
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a measurement test.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When NG is displayed, please verify measurement results and make Adjust if necessary.
Points on Test Measurement and Adjustment (Edge Position)
