Edge Position

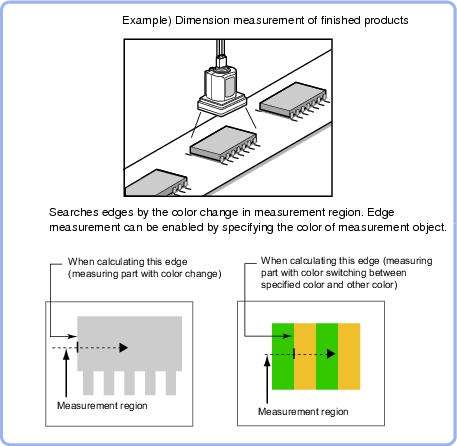

Detects the position of the measurement object according to the color change within in the measurement region.

When calculating edge coordinates of measurement objects
When calculating width of measurement objects
With the expression, the width of the measurement object can be calculated based on the edge position difference of 2 points.

Edge position items are explained below.

Table: List of Edge Position Items
Menu Name	Description
Region setting	This item specifies the measurement region. [Region setting (Edge Position)]
Edge color (for color cameras only)	This item specifies an edge color information to be detected. [Edge Color - for Color Cameras Only (Edge Position)]
Reference position	This item can be changed if necessary. The edge position is registered, which is once measured when setting up the region. [Reference Position (Edge Position)]
Measurement	This item specifies the judgement condition for measurement results. Measurement values can be changed as needed to address unstable measurement results. The displayed items are different depending on whether your camera is a color or monochrome camera. Normally the factory default value will be used. [Measurement (Edge Position)]
Output parameter	This item can be changed if necessary. Usually, the factory default value can be used. Use the Output parameter to specify how to treat the coordinate. [Output Parameter (Edge Position)]
