Setting up [Search]

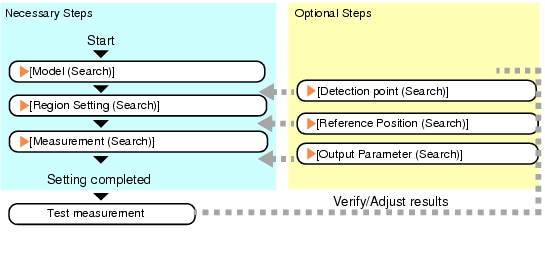

Set up search according to the following flow.

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

In the Edit Flow window, tap [Search].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
The window opens with [Model] selected, so that you register the model as a pattern characteristic of the measurement object.
[Model (Search)]
In the "Item tab" area, tap [Region setting] and specify the measurement region.
[Region Setting (Search)]
In the "Item tab" area, tap [Measurement] and specify the judgement condition for OK.
[Measurement (Search)]
Important
- After setting up the measurement, changing the output parameters will cause measurement results to vary accordingly. If the output parameters have been changed, re-specify the measurement parameters, too.
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform measurement test.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When NG is displayed, please verify measurement results and make Adjust if necessary.
Points on Measurement Test and Adjustment (Search)
