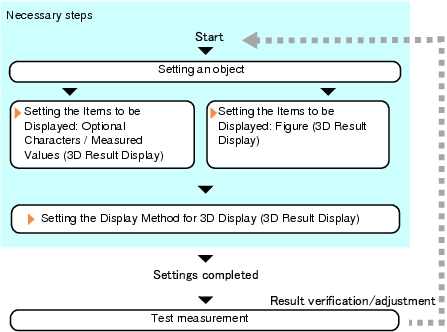

Setting Up [3D Result Display]

In the Edit flow window, tap [3D Result Display].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
In the "3D result display list" area, select the number for the object to be set, and then tap [Add].
Note
When editing something that already exists
- Select the object to be edited and tap [Edit].
In the Select items to display window, select the object to be added and tap [OK].
The selected object is added to the "3D result display list" area.
Select an object in the "3D result display list" area, and tap [Edit].
Setting options are displayed. Setting options differ depending on objects.
- Optional Characters and/or Measured Values
  See Setting the Items to be Displayed: Optional Characters / Measured Values (3D Result Display).
- Figure
  See Setting the Items to be Displayed: Figure (3D Result Display).
Tap [3D Display].
Items for setting 3D Display are displayed.
For how to set them, see Setting the Display Method for 3D Display (3D Result Display).
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a test measurement.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When "NG" is displayed, verify measurement results and make adjustments if necessary.
