Processing Items List Manual
 Processing item List > Chapter 7 - Result Display > 3D Result Display > Setting the Items to be Displayed: Optional Characters / Measured Values (3D Result Display)

Setting the Items to be Displayed: Optional Characters / Measured Values (3D Result Display)

  1. Select "Numerical" or "Operation" for "Display position", and specify the display coordinates.
    3D Result Display - Detail Area
    When "Numerical" is selected:
    1. Tap [...] for "Disp pos" and specify X and Y coordinates of the upper left corner of the text box.
      3D Result Display - Detail Area
      How to input a value: User's Manual, "Inputting a Value"
      In the Image Display area, you can tap your desired display position.
    When "Operation" is selected:
    1. Tap [...] for "Disp pos".
      3D Result Display - Detail Area
      The Setting Expression window is displayed.
    2. Specify an expression.
      How to specify expressions: Structure and Creation of Expression
  2. Set up the display contents.
    The items displayed differ depending on the object selected in the "3D result display list" area.
    Display string
    3D Result Display - Detail Area
    1. Tap [...] of "Set letters", and set the characters to display in the 3D Result Display.
      How to input text: User's Manual, "Inputting a Text"
    Note
    • Up to 64 characters can be entered.
    Display value
    Set an expression to display measured data.
    3D Result Display - Detail Area
    1. Tap [...] for "Measurement".
      The Setting Expression window is displayed.
    2. Specify an expression.
      How to specify expressions: Structure and Creation of Expression
    3. Tap [Icon] for "Integer" and "Decimal" and specify the number of digits for each.
      Table: Specifying Number of Digits (3D Result Display)
      Setting Item
      Set Value
      [Factory default]
      Description
      Integer
      1 to [10]
      Specify number of digits the integer part including the sign. For positive numbers, the plus sign is not output.
      Example
      For the data -5619, if 4 is set as the number of digits
      The data is output as "-999".
      Decimal
      0 to [4]
      Specify the number of output digits in the decimal part. When set to 0, the entire decimal part is rounded for output.
  3. Perform the detailed setting if required.
    1. Tap [Detail].
      3D Result Display - Detail Area
      Detailed setting items are displayed in the "Detail" area.
    2. Set up the necessary items.
      3D Result Display - Detail area
      The font type cannot be specified. Text is displayed in the same font as the menus.
      Table: 3D Result Display (3D Result Display) - Details
      Setting Item
      Set Value
      [Factory default]
      Description
      Align
      • [Top]
      • Bottom
      • [Left]
      • Center
      • Right
      Select the alignment of the text.
      Size
      10 to 200
      [24]
      Specify the font size.
      Angle
      [0] to 359
      Specify the tilting of the displayed object.
      Style
      • Bold
      • Italic
      • Under line
      • Mark out
      Select the character decoration.
      Color
      • [OK color]
      • NG color
      • Judgement
      • Arbitrary color
      Select the color for displaying the measured values.
  4. If necessary, change the title.
    1. Tap [Change title].
      3D Result Display - Detail area
      A software keyboard is displayed.
      How to input text:User's Manual, "Inputting a Text"
      Up to 15 characters can be entered.
    2. Input a title and tap [OK].

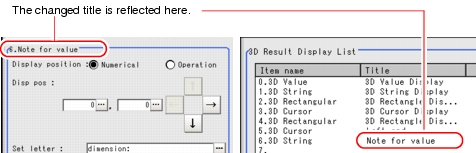

      The modified title is displayed as the title for the "Detail" area and in the column of the title in the "3D result display list" area.
      After Changing the Title (3D Result Display List)
  5. Tap [OK].
    The items to be displayed for the object are registered, and the "3D result display list" area is displayed.
For the subsequent operations, see Setting Up [3D Result Display].
