Setting the Items to be Displayed: Figure (3D Result Display)

The operation method is explained here by using [Display 3D Rectangular] as an example.

For setting the items other than [Display 3D Rectangular], replace words as necessary when you read the explanation.

For the "Detail" window of a non-rectangular figure, see

Specify the position to display the figure.
1. Tap [...] for each item.
  The Setting Expression window is displayed.
2. Set values and expressions.
  How to specify expressions: Structure and Creation of Expression

Set line width and line color as necessary.

Table: 3D Result Display (3D Result Display) - Details
Setting Item	Set Value [Factory default]	Description
Width	[1] to 10	Specify the line width.
Color	[OK color] NG color Judgement Arbitrary color	Select the color of the figure.

If necessary, change the title.
1. Tap [Change title].
  A software keyboard is displayed.
  How to input text:User's Manual, "Inputting a Text"
  Up to 15 characters can be entered.
2. Input a title and tap [OK].

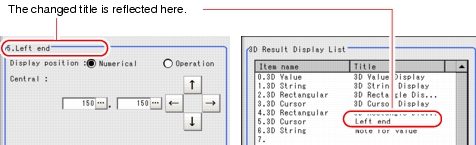

  The modified title is displayed as the title for the "Detail" area and in the column of the title in the "3D result display list" area.
Tap [OK].
The details of the object are registered, and the "3D result display list" area is displayed.

For the subsequent operations, see
