Processing Items List Manual
Processing item List
>
Chapter 6 - Result Output
>
Data Output
> Setting up [Data Output]
Setting up [Data Output]
Note
Operations of the ProcItem Setting window
For the basic operations of the ProcItem Setting window, see
User's Manual, "Operations of ProcItem Setting Window"
.
In the Edit Flow window, tap [Data Output].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
In the "Item tab" area, tap [Setting] and set up the output contents.
For details, see
[Setting (Data Output)]
.

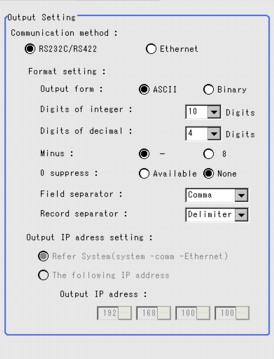

In the "Item tab" area, tap [Output format] and specify the format.
Select the format for serial output.
For Details, see
[Output format (Data Output)]
.
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
In the "Control" area, check "Output" in [Test Measurement setting] to enable the external output, and execute measurement.
User's Manual, "The Flow before Starting the Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When NG is displayed, please verify measurement results and make Adjust if necessary.
