Processing Items List Manual
 Processing item List > Chapter 6 - Result Output > Data Output

Data Output

Used for the following case

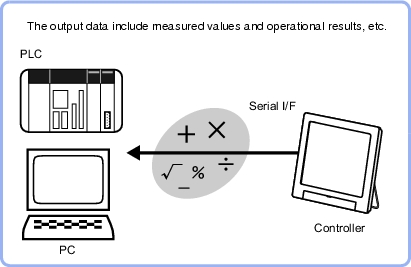

  • Output data to the external devices such as PLC and PC with the no-order mode via the serial interface.
    Data Output - Overview
Important
  • When performing measurements in the Adjustment window, the values are only output when output is enabled by the following method during the measurement.
    • In the "Control" area, check "Output" in [Test measurement setting].
    When the measurement is executed in the RUN window, output is executed regardless of the external output setting.
  • Even if this Processing item is not set for a scene, overall judgement for the set Processing item is output by an OR signal of the serial interface.
