The Flow before Starting the Operation

After creating scenes on the ADJUST window and performing test measurements, switch to the RUN window and perform measurements.

In the ADJUST window, create a scene (measurement flow).
Creating a New Scene
Perform test measurements in the ADJUST window and adjust the parameters of processing items.
Test Measurement before Actual Operation
Perform test measurement by checking "Output" in the ADJUST window, and confirm the interface between output signal and external device.
Test Measurement before Actual Operation

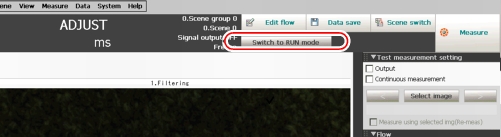

Tap [Switch to RUN mode] in the ADJUST window.
The window switches to the RUN window. About the content of the display in the RUN window, see Display of the RUN Window.

Note

You can set to show the RUN window whenever the power of controller is turned on.
Setting the Status at the Startup [Startup setting]
Lighting gets darker gradually if it is used for a long time, so adjust judgement conditions periodically.
Without stopping a measurement in operation, you can change judgement conditions of a processing unit that is set in a scene.
Changing Judgement Condition of a Unit during Measurement
