Setting up [3D Search]

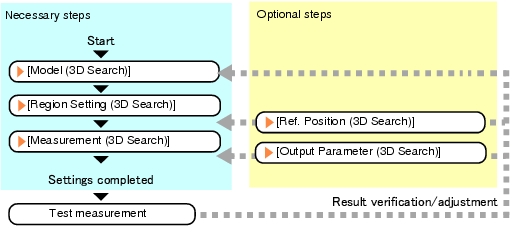

The setting procedure for [3D Search] is as follows:

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

In the Edit Flow window, tap [3D Search].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
The window opens with [Model] selected, to register the model as a pattern characteristic of the measurement object.
[Model (3D Search)]
In the "Item tab" area, tap [Region setting] and specify the measurement region.
[Region Setting (3D Search)]
In the "Item tab" area, tap [Measurement] and specify the judgement condition for OK.
[Measurement (3D Search)]
Important
- After setting up the measurement parameters, changing the output parameters will cause measurement results to vary accordingly. If the output parameters have been changed, re-specify the measurement parameters, too.
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a test measurement.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When "NG" is displayed, verify measurement results and make adjustments if necessary.
Points on Measurement Test and Adjustment (3D Search)
