Setting up [Model Dictionary]

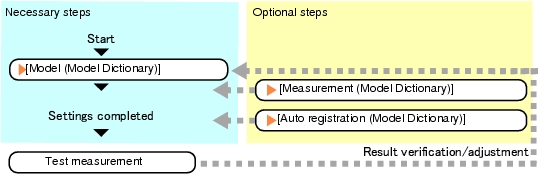

Follow the steps below to set up [Model Dictionary].

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

In the Edit Flow window, tap [Model Dictionary].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
The window opens with [Model] selected, so that you register the model as a pattern characteristic of the measurement object.
[Model (Model Dictionary)]
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a test measurement.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When "NG" is displayed, verify measurement results and make adjustments if necessary.
Points on Measurement Test and Adjustment (Model Dictionary)
