Settings Flow (Sophisticated Labeling+)

Sophisticated labeling+ can be set up as follows.

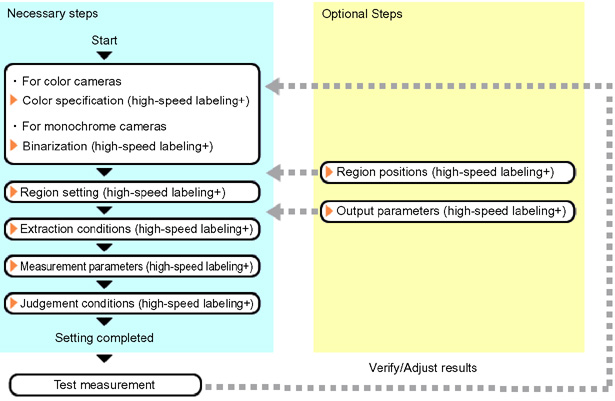

Sophisticated labeling+ - Operation flowColor settingBinaryRegion settingExtraction conditionMeasurement parameterJudgement conditionOutput parameterReference position

List of Sophisticated Labeling+ Items

Item name
Description
Color setting
(for color cameras only)
This item selects the color whose area and center of gravity are to be measured.Since the color hue, color saturation, and brightness can be selected, then fine-tuning can be performed to colors.
Color Specification (Sophisticated Labeling+)
Binary
(for monochrome cameras only)
This item specifies the binary level for converting 256-tone grayscale images input from the camera into binary images.
Converted white pixels are measured.Adjust the binary level so that the measurement object is converted to white pixels.
Binarization (Sophisticated Labeling+)
Region setting
This item is used to set up the measurement area.
While the input image can be measured as a whole, a quick and reliable measurement can be performed by set up the measured range.
Range Setting (Sophisticated Labeling+)
Reference position
This item can be changed if necessary.Usually, the central position of the registered region is registered as the reference position.
Reference Position (Sophisticated Labeling+)
Extraction condition
Measurement parameter
Set the labeling conditions.Specify the labeling processing, number of labels and sorting conditions.
Measurement parameter can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Measurement Parameters (Sophisticated Labeling+)
Judgement condition
This item specifies the judgement condition for measurement results.
Judgement Conditions (Sophisticated Labeling+)
Output parameter
This item can be changed if necessary.Normally, the factory default value may be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Sophisticated Labeling+)
