Judgement Conditions (Sophisticated Labeling+)

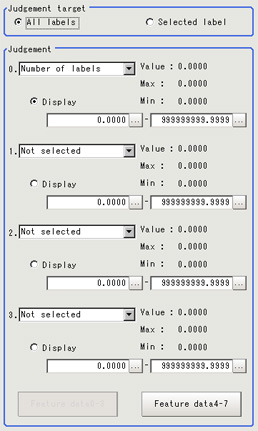

  1. In the "Item tab" area, tap [Judgement].
  2. If necessary, specify a value for each item.
    To set feature quantities 4-7, tap the [Feature data4-7] button.
    Judgement condition - "Detail" area
    Setting item
    Set value
    [Factory default]
    Description
    • Judgement object label
    • All
    • [Judgement target]
    Specify the labels to be targeted.
    When specified label is selected, only labels specified by number are judged.(However, when Judgement condition is Number of labels, it is not applied.)
    When All is selected, all extracted labels are judged.
    • Judgement condition
    Set up the judgement condition.
    • [OFF]
    • Number of labels
    • Area
    • Gravity X
    • Gravity Y
    • Elliptic axis angle
    • Elliptic major axis
    • Elliptic mainor axis
    • Elliptic ratio
    • Rectangle width
    • Rectangle height
    • Rectangle X1
    • Rectangle Y1
    • Perimeter
    • Circularity
    • Fit rect mejor axis
    • Fit rect minor axis
    • Fit rect ratio
    • Inscribed circle X
    • Inscribed circle Y
    • Inscribed circle R
    • Circum. circle X
    • Circum. circle Y
    • Circum. circle R
    • Number of holes
    0.000 to 9999999.999
    Drawing radio buttons
    [Judge judge0]
    Specify the feature quantities displayed on the image.
