Setting up [Circle Angle]

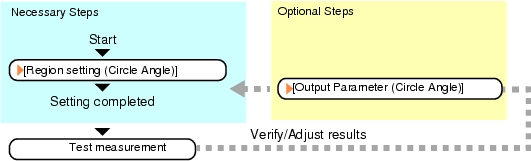

The Circle Angle should be set up with the following procedure.

Note

Operations of the ProcItem Setting window

For the basic operations of the ProcItem Setting window, see User's Manual, "Operations of ProcItem Setting Window".

In the Edit Flow window, tap [Circle angle].
The ProcItem Setting window is displayed.
User's Manual, "ProcItem Setting Window"
In the "Item tab" area, tap [Region setting] and specify the measurement region.
[Region setting (Circle Angle)]
Tap [OK].
After confirmation, the ProcItem Setting window will be closed.
Perform a measurement test.
User's Manual, "Test Measurement before Actual Operation"
Verify measurement results.
User's Manual, "Display of the RUN Window"
When NG is displayed, please verify measurement results and make Adjust if necessary.
Points on Measurement Test and Adjustment (Circle Angle)
