Trend Monitor

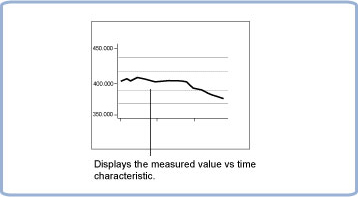

Enables the history of the measurement results to be displayed on the monitor.

Used in the Following Case

  • When you want to prevent repeated occurrences of failed product
    Trend Monitor - Overview
  • When you want to analyze the cause of NG
    Trend Monitor - Overview

List of Trend Monitor Items

Item name
Description
Measurement
Select the measurement value to be displayed on the trend monitor.
Measurement Value (Trend Monitor)
Display range
Specify the display range.You can scroll the display range of a graph up and down or zoom in/out.
Display Range (Trend Monitor)
Judgement

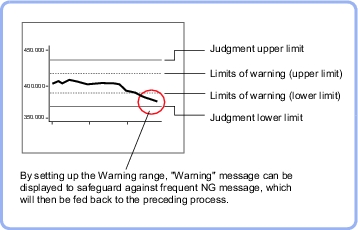

Set the conditions for deciding when measurement results are judged as OK, and set the warning range for issuing a caution before there are many NG occurrences.
Judgement Conditions (Trend Monitor)
History display
Data save
Save the measurement results recorded in the trend monitor to USB memory.
Data Save (Trend Monitor)
Output parameter
This item can be changed if necessary.Normally, the factory default value will be used.
Specify whether to reflect the judgement result to the overall judgement of the scene.
Output Parameters (Trend Monitor)
