Measurement History Display (Trend Monitor)

Displays measurement history.
  1. Tap [History display] in the Item Tab area.
  2. Tap judgement displayed in the "Measurement history" area.

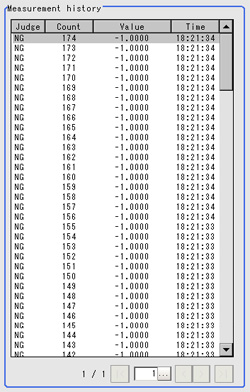

    Measurement History Display - "Filter Setting" area
    The measurement values and time are displayed.

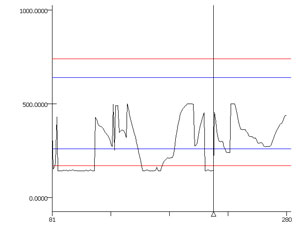

    In the Image Display area, longitudinal lines displayed at NG positions in the graph show where NG have occurred.
    NG Display - image display area
  3. Set up a filter as necessary.
    Measurement History Display - "Filter Setting" area
    Setting item
    Set value
    [Factory default]
    Description
    Judge
    • All
    • Only OK
    • [Only NG]
    Sets the judgement results that are displayed.
    Sort order
    • Count ascending
    • [Count descending]
    • Value ascending
    • Value descending
    Sets the sort order for the judgement results to display.
  4. Sets up a display graph as necessary.
    Measurement History Display - Graph setting area
    Setting item
    Set value
    [Factory default]
    Description
    Graph selection
    • [Trend graph]

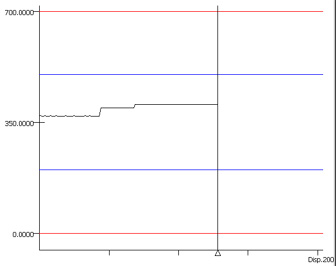

    The vertical direction shows measurement values and horizontal direction shows number of items.
    This is convenient for showing time elapse and changes in measurement.
    Measurement History Display - Image display area

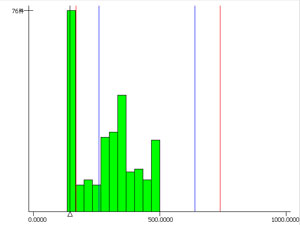

    • Histogram
    The vertical direction shows number of items and horizontal direction shows measurement values.
    This is convenient for showing distribution.
    Measurement History Display - Image display area
