Data Save (Trend Monitor)

The measurement results recorded in the trend monitor can be saved in the USB device. Since the data can be saved in CSV format, it can be edited on the PC.
The data to be saved includes all the statistical data, the value and time stamp when NG occurs (up to 36 items) and the measurement result on the graph (up to 1000 items).Up to 100000 items of measurement results can be saved in extended format. The format is as follows.

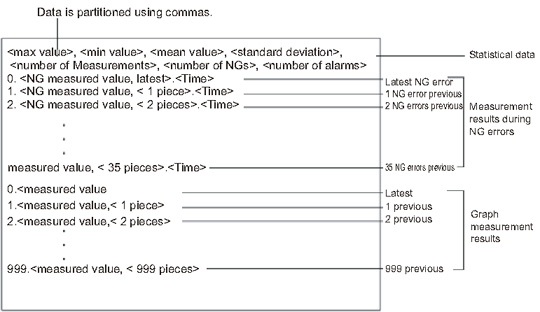

Illustration of CSV format measurement data
Important
  • Please insert USB memory first before saving data.
    For the USB connection position, see the Instruction Manual.
  1. In the Item Tab area, tap [Data save].
  2. Specify format in the "Save setting" area.
    Measurement History Display - Save setting
    Standard format
    Line
    Text
    Description
    1
    <Maximum>, <Minimum>, <Average>, <Deviation>, <Count>, <NG count>, <Warning count>
    Statistical data
    2
    3
    0, <NG measured value,latest>, <Time>
    Last NG
    Measurement results when NG occurs
    (Max: 36 items)
    4
    1, <NG measured value,<1 piece>>, <Time>
    Last 1 NG
    5
    2, <NG measured value,<2 piece>>, <Time>
    Last 2 NG
    :
    :
    :
    38
    35, <NG measured value,<35 piece>>, <Time>
    Last 35 NG
    39
    40
    0, <measured value,latest>
    Last
    Measurement result
    (Max: 1000 items)
    41
    1, <measured value,<1 piece>>
    Last 1
    42
    2, <measured value,<2 piece>>
    Last 2
    :
    :
    :
    1039
    999, <measured value,<999 piece>>
    Last 999
    Extended format
    Line
    Text
    Description
    1
    <Maximum>, <Minimum>, <Deviation>, <Plus 3σ>, <Plus σ>, <Average>, <Minus σ>, <Minus 3σ>, <Count>, <OK count>, <NG count>, <Warning count>, <Yield>
    Statistical data
    2
    3
    0, <judgment result,latest>, <measured value,latest>, <Time>
    Last
    Measurement result
    (Max: 100000 items)
    4
    1, <judgment result,<1 piece>>, <measured value,<1 piece>>, <Time>
    Last 1
    5
    2, <judgment result,<2 piece>>, <measured value,<2 piece>>, <Time>
    Last 2
    :
    :
    :
    100002
    99999, <judgment result,<99999 piece>>, <Last 99999 Measurement>, <Time>
    Last 99999
    Note
    • The default for the file name is the data save date (example: 0410.csv).If it is half-width alphanumeric characters, it can be changed arbitrarily.
  3. In the "Save setting" area, tap [Save].
    The data is saved to USB memory.
