Display Range (Trend Monitor)

If what you want to see is not on the screen, scroll the graph up and down or zoom in/out.
Also, items displayed horizontally can be toggled.
  1. In the Item Tab area, tap [Display range].

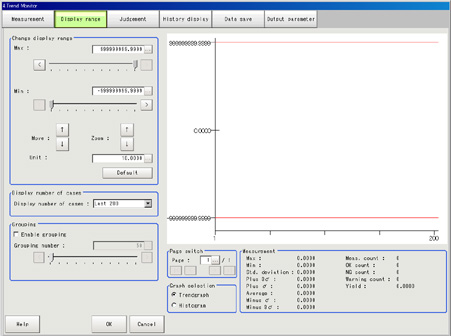

    A graph is displayed in the Image Display area.
    Display range
    Note
    • If the window is entered after measurement is performed a few times and [Default] is tapped on, a display range suitable for these measurement values is automatically set.
      Display Range - "Change display range" area
    Setting item
    Set value
    [Factory default]
    Description
    Change display range
    Max
    -999999999.9999 to 999999999.9999
    Sets the upper (highest value) and lower (lowest value) sections of the graph.
    Min
    Move
    Moves up and down the graph itself.
    Zoom
    Zooms the graph itself in and out.
    Unit
    1 to 1000000.0000
    Sets the amount of variation generated when the up/down buttons for moving or zooming in/out are pushed.
    Default
    -
    If several measurements have already been made, an optimal display range is automatically set based on the measurement results.
    Display number of cases
    • [Last 200]
    • Last 1000
    • Last 5000
    • Last 10000
    • Last 50000
    • Last 100000
    Selects the number of items displayed in the horizontal direction on the graph.
    Enable grouping
    • [Checked]
    • Unchecked
    Draws a rectangle that shows the maximum and minimum of measurement data for every set number of items.
    This enables viewing the maximum and minimum in a section at a glance.
    0 to 5000
    [50]
    Sets the number of items that can be grouped.

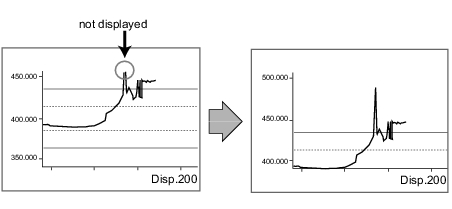

    Move
    Illustration of moving display range up and down

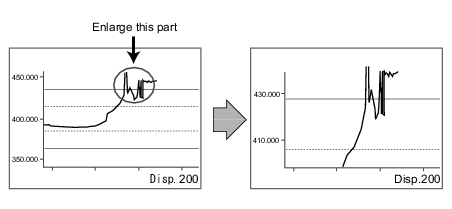

    Zoom
    Example: Enlarging a part where measurement results were unstable
    Illustration of unstable measurement area

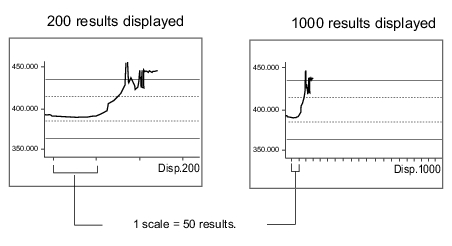

    Horizontal
    Illustration of changing graph in the horizontal direction (number of items displayed)
