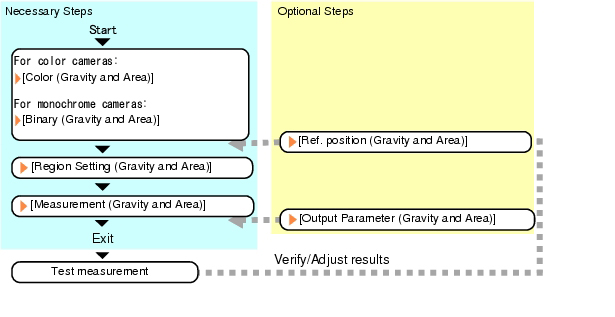

Color setting
(for color cameras only)

This item selects the color whose area and center of gravity are to be measured.Since the color hue, color saturation, and brightness can be selected, then fine-tuning can be performed to colors.
Color Specification (Area Gravity Center)

Binary
(for monochrome cameras only)

This item specifies the binary level for converting 256-tone grayscale images input from the camera into binary images.

Converted white pixels are measured.Adjust the binary level so that the measurement object is converted to white pixels.
Binarization (Area Gravity Center)

Region setting

This item is used to set up the measurement area.

While the input image can be measured as a whole, a quick and reliable measurement can be performed by set up the measured range.
Region Setting (Area Gravity Center)

Reference position

This item can be changed if necessary.Usually, the central position of the registered region is registered as the reference position.
Reference Position (Area Gravity Center)

Measurement parameter

This item specifies the judgement condition for measurement results.Specify the upper and lower limit values for the area and the gravity center X/Y.

Measurement parameter can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.

Output parameter

This item can be changed if necessary.Normally, the factory default value will be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Area Gravity Center)
