Color Specification (Area Gravity Center)

When connecting a color camera, specify the color to be measured.There are two specification methods: specifying the color to be extracted in the image or specifying the color with the hue, saturation, and brightness values.

This section describes how to specify colors in an image and gives an example of the procedure for finely adjusting with numeric input afterwards.

In the "Item tab" area, tap [Color setting].
Place a check at [Automatic].
In the "Image display" area, specify the color range you want to detect by dragging the cursor from the upper left corner to the lower right corner of that area.
The color of the specified area is automatically set.

Finely adjust the hue, saturation, and brightness if necessary.

Adjust either by adjusting on the color chart or by inputting numbers.

Item	Set value [factory default]	Description
H	0 to 359	Specify the color phase (difference of color hues).
S	0 to 255	Specify color saturation (difference of color saturation).
V	0 to 255	Specify the brightness (difference of brightness).
Automatic	Checked [Unchecked]	Specifying the color to be measured on the image automatically sets the hue, saturation, and brightness.
Color inv.	Checked [Unchecked]	Everything other than the specified color becomes the measurement target.

About color charts

Color specification - "Color specification setting" area

To specify multiple colors, place a check at "More ranges of color extraction".
Setting item
Set value
[factory default]
Description
More ranges of color extraction
Checked
[Unchecked]
If you place a check at this option, you can set up to 8 colors.

Setting item	Set value [factory default]	Description
More ranges of color extraction	Checked [Unchecked]	If you place a check at this option, you can set up to 8 colors.

If necessary, set the display conditions for displayed images.

Color specification - "Display setting" area

Setting item		Set value [factory default]	Description
Exclude this color		Checked [Unchecked]	If you place a check at this option, pixels within the HSV range are excluded from color extraction.The priority order for exclusion is that the higher color extraction range numbers are given priority. This setting is disabled if "More ranges of color extraction" is unchecked.

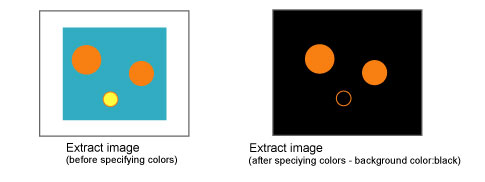

	Background color	[Black] White Red Green Blue	The background section outside the extracted image is filled with the specified colors.
	Image kind	Measurement image [All color image] Selection color image Binary image	This sets the state of the image to display.
