3D Height

3D Height

This processing item is for 3D measurement only.

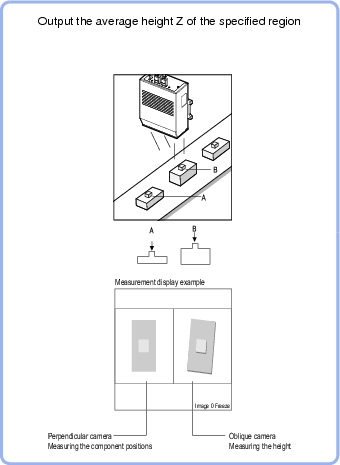

This processing item obtains the average height of the specified rectangle region by stereo measurement.

Used for the following case

When measuring the height of a measured object

List of 3D Height Items

3D Height items are explained below.

Table: List of 3D Height Items
Item Name	Description
Region setting	This item registers a model to search for. [Region Setting (3D Height)]
Ref.position	This item can be changed if necessary. Specify the reference position within the camera's field of view. [Ref. Position (3D Height)]
Measurement	This item specify the judgement condition for measurement results. Specify the criteria to judge the measurement result if its X/Y/Z-coordinates and its correlation with the model are OK. [Measurement (3D Height)]
Output parameter	This item can be changed if necessary. Usually, the factory default value can be used. Use the Output parameter to specify how to treat the coordinates. [Output Parameter (3D Height)]
