Processing Items List Manual
 Processing item List > Chapter 7 - Result Display > Result Display > Set up View Contents : Any Text / Value / Judge Text / Date and Time (Result display)

Set up View Contents : Any Text / Value / Judge Text / Date and Time (Result display)

  1. Select "Numerical"or "Operation" for "Display position", and specify the display coordinates.
    Result Display - Detail Area
    When "Numerical" is selected:
    1. Tap [...] for "Disp pos" and specify X and Y coordinates of the upper left corner of the text box.
      Result Display - Detail Area
      How to input a value:User's Manual, "Inputting a Value"
      In the "Image display" area, you can tap your desired display position.
    When "Operation" is selected:
    1. Tap [...] for "Disp pos".
      Result Display - Detail Area
      The Setting Expression window is displayed.
    2. Specify an expression.
      For how to specify an expression, see Structure and Creation of Expression
  2. Specify the display contents.
    The display items differ depending on the object selected in the "List of result display" area.
    Display string
    Result Display - Detail Area (Display String)
    Tap [...] for "Set letter" and set up the characters to be displayed in the measurement results.
    Characters entering methods:User's Manual, "Inputting a Text"
    Note
    • Up to 64 characters can be entered.
    Display value
    Use the expression to set up the measured data to be displayed.
    Result Display - Detail Area (Display Value)
    1. Tap the button to the right of "Measurement".
      The Setting Expression window is displayed.
    2. Specify an expression.
      For how to specify an expression, see Structure and Creation of Expression.
    3. Tap [Icon] for "Integer" and "Decimal" and specify the number of digits for each.
      Table: Digits Specification (Result Display)
      Setting Item
      Set Value
      [Factory Default]
      Description
      Integer
      1 to [10]
      Specify the width of the integer part including the sign. For positive numbers, the plus sign is not output.
      Example
      Setting:4 digits, Data:-5619
      The data is output as "-999".
      Decimal
      0 to [4]
      Specify the number of output digits in the decimal part. When set to 0, the entire decimal part is rounded for output.
    Display item name
    Result Display - Detail Area (Display Item Name)
    1. Tap [Icon] for "Item" and select a processing item.
      The selected item will be displayed as one of the Processing Item in the currently displayed scene. When a name has been given to the unit, the name will then be displayed.
    Display judge
    Result Display - Detail Area (Display Judge)
    1. Tap [...] for "Judge type".
      The Setting Expression window is displayed.
    2. Specify an expression.
      For how to specify an expression, see Structure and Creation of Expression.
      Display the Measurement Results that have been set up for the expression in the "Value".
    3. Tap each [...] for the "judge cond" and set up the upper limit and the lower limit for the judge condition (OK range) that corresponds to the expression.
      For how to input value, see User's Manual, "Inputting a Value".
    4. Tap each [...] for "OK letter" and "NG letter" and set up the display that corresponds to the result of expression (OK/NG).
      For how to input characters, see User's Manual, "Inputting a Text"
      Up to 30 characters can be entered.
    Note
    • Up to 64 characters can be entered.
    Display date
    Select the display format of the date and the time.
    Important
    Result Display - Detail Area (Date kind)
    1. Tap [Icon] for "Date kind" and select the display format.
      Table: Time display specification (Result display)
      Set Value
      [Factory defaults]
      Examples
      Month/Day/Hour/Minute/Second
      10/01 01:23:45
      Month/Day/Hour/Minute
      10/01 01:23
      Hour/Minute/Second
      01:23:45
      Hour/Minute
      01:23
  3. Perform the detailed settings if required.
    1. Tap [Detail].
      Result Display - Detail Area
      Detailed setting items are displayed in the "Detail" area.
    2. Specify the necessary items.
      Result Display - Detail Area
      Font cannot be selected. Use the same font as the menu.
      Table: Result display (Result display) - Detailed setting
      Setting Options
      Set Value
      [Factory defaults]
      Description
      Align
      • Top
      • Bottom
      • Left
      • Center
      • Right
      Select the alignment of the text.
      Size
      10 to 200
      [24]
      Specify the character size.
      Angle
      [0] to 359
      Specify the tilting of the displayed object.
      Style
      • Bold
      • Italic
      • Under line
      • Mark out
      Select the character decoration.
      Color
      • [ OK Color]
      • NG Color
      • Judgement
      • Arbitrary color
      Select the display color of the value or date.
  4. If necessary, change the title.
    1. Tap [Change title].
      Result Display - Detail Area
      A software keyboard is displayed.
      How to input text: User's Manual, "Inputting a Text"
      Up to 15 characters can be entered.
    2. Input a title and tap [OK].

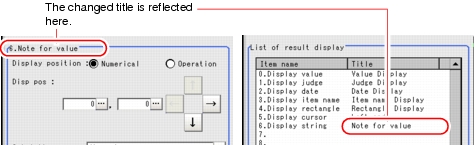

      The changed title is displayed in the "Detail" area, and in the "Title" column of the "List of result display" area.
      Change Title (Result Display)
  5. Tap [OK].
    The display settings for the object are registered, and the "List of result display" area is displayed.
For the following operations, see Setting up [Result Display].
