Result Display

Used for the following case

For your convenience to verify measurement results, text and figure will be displayed in the "Image display" area.

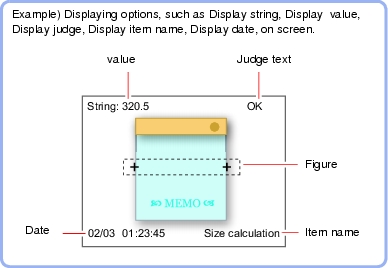

The contents to be displayed are as follows:

Display string
Displays any text about the measurement.
Display value
Displays any measured data.
Since the expression is used, then both the value and the operation result of the expression can be displayed.
Display judge
Any text can be displayed according to the judgement (OK/NG).
OK or NG can be displayed based on the expression that is set up as the judging basis.
Display item name
Displays the name of the processing item that is set up in a scene.
When the unit name is set up in the processing item, it can also be displayed.
Display date
Displays the measurement date and time.

Display figure

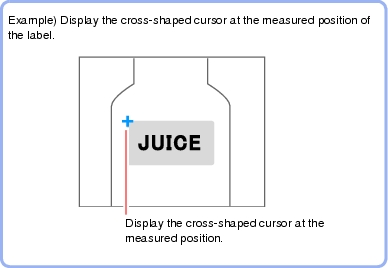

Figures (rectangles, straight lines, ellipses, circumferences, arcs, and cursors) can be displayed at specific positions.
