Drawing Procedures

This section describes how to register models, draw figure in measurement region and specify the measurement region.

Display the "Figure setting" area by one of the following methods.
- For "Model registration" in Processing item setting
  The number and type of the objects you can register are different depending on the processing item.
  Or drawn by using OR setting/NOT setting.
  OR Setting/NOT Setting.
- For "Region setting" in Processing item setting
  Objects to be registered may differ from the Processing item.
  Corresponding Image List of Processing Items
- For figure setting in Processing item "Result Display"
  Processing Items List Manual, "Result Display"
Important
- In the "Figure setting" area, the type and the number of the objects that you can set vary depending on which function they are displayed from or which processing item they are used by.
  For details, see every Processing item and Corresponding Image List of Processing Items.

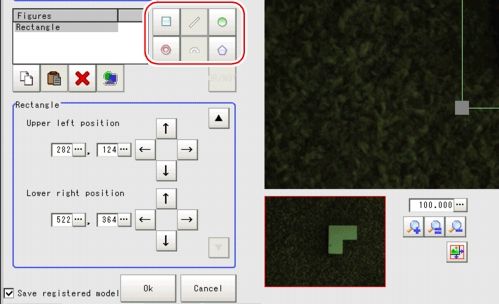

Tap the object button to be drawn from Image Tool button.
For OR/NOT setting, see OR Setting/NOT Setting.
Draw the objects.
The objects are registered.
Note
To enlarge
- Use the Zoom function to enlarge the displayed image.
  Using Zoom Function
To check the drawn objects
- The type and the consecutive number of drawn objects are displayed on the left of the "Figure setting" area.
  "Figure Setting" Area
Objects can be added by tapping Image Tool button.
Note
- Object can be deleted by tapping the objects to be deleted and [Delete] ().
  To delete all the drawn objects, tap [Select all] () and then tap [Delete] ().
Repeat 2. to 4., draw figure.
Tap [OK] when drawing is over.
The settings are registered.
