Settings Flow (Scan Edge Position)

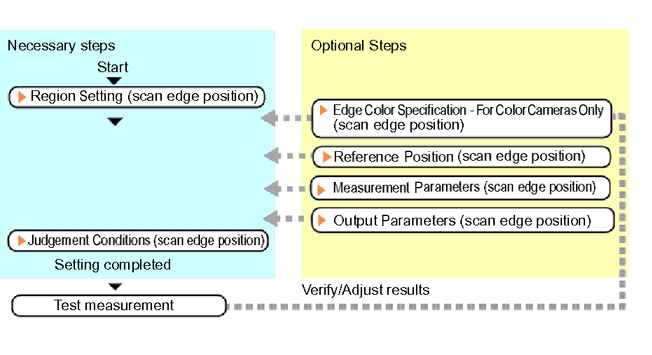

Set the scan edge position with the following steps.
Scan Edge Position - Operation flowRegion SettingReference PositionEdge Color Specification - For Color Cameras OnlyJudgment ConditionsMeasurement ParametersOutput Parameters

Item List for Scan Edge Position

Item name
Description
Region setting
This item is used to set up the measurement area.
Edge color
(for color cameras only)
If the color of the edges to be detected is decided, specify the information for the edge color to be detected.
Ref. position
This item can be changed if necessary.
The edge position measured once is registered when the region is set.
Reference Position (Scan Edge Position)
Measurement
This item changes the measurement parameter as necessary when the measurement result is unstable.
The displayed items depend on whether your camera is a color or monochrome camera.Normally, the factory default value will be used.
Measurement Parameters (Scan Edge Position)
Judgement
This item specifies the judgement condition for measurement results.
Judgment Conditions (Scan Edge Position)
Output parameter
This item can be changed if necessary.Normally, the factory default value may be used.
Select the measurement result coordinates and set how to handle the coordinates.
Output Parameters (Scan Edge Position)
