Judgment Conditions (Scan Edge Position)
Specify the range to be judged as OK.

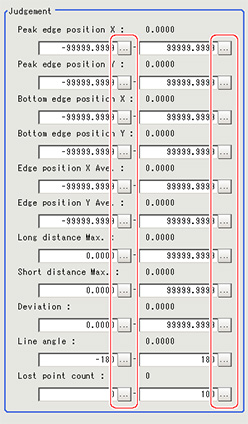

- In the Item Tab area, tap [Judgement].
- Set up the judgement condition.
Note- The values beside each item are measurement results of the displayed image.Take these values into consideration to determine the upper and lower limits.
| | |
|---|

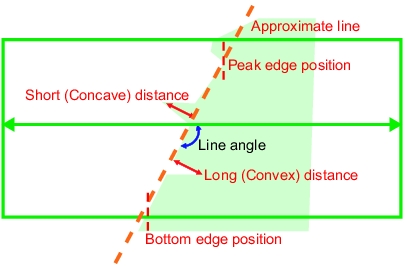

| -99999.9999 to 99999.9999 | Specify the X-axis upper and lower limits of the peak edge position X judged to be OK. |
| -99999.9999 to 99999.9999 | Specify the Y-axis upper and lower limits of the peak edge position Y judged to be OK. |
| -99999.9999 to 99999.9999 | Specify the X-axis upper and lower limits of the bottom edge position X judged to be OK. |
| -99999.9999 to 99999.9999 | Specify the Y-axis upper and lower limits of the bottom edge position Y judged to be OK. |
| -99999.9999 to 99999.9999 | Specify the X-axis upper and lower limits of the average edge position judged to be OK. |
| -99999.9999 to 99999.9999 | Specify the Y-axis upper and lower limits of the average edge position judged to be OK. |
| | Specify the upper and lower limits of the long distance maximum judged to be OK. |
| | Specify the upper and lower limits of the long distance minimum judged to be OK. |
| | Specify the upper and lower limits of the short distance maximum judged to be OK. |
| | Specify the upper and lower limits of the short distance minimum judged to be OK. |
| | Specify the upper and lower limits of the deviation judged to be OK. |
| | Specify the upper and lower limits of the line angle judged to be OK. |
| | Specify the upper and lower limits of the lost point count judged to be OK. |
* dist (X_MAX,Y_MAX) = sqrt (X_MAX*X_MAX+Y_MAX*Y_MAX)
