Scan Edge Positions

Scan Edge Position

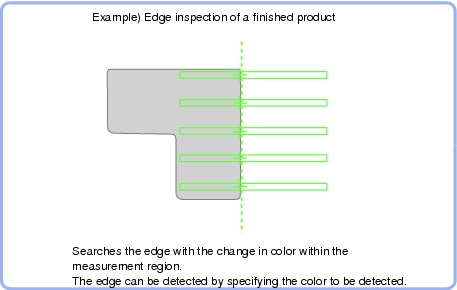

This processing item detects the position of the measurement object by using the change in color within the measurement region.By dividing the measurement region, the following effects can be expected compared to ordinary edge position measurement.

Detailed information, such as the closest point or furthest point from the measurement start point, can be calculated.
The inclination or degree of unevenness of the measured object can be calculated.

Used in the Following Case

To calculate multiple edge positions of the measurement object from statistical data

Note

Edge image measurement processing mechanism
See "User's Manual", "Edge Detection Measurement"
