Region Setting (Scan Edge Position)

This item is used to set up the measurement area.
Specify the measurement region for [Scan Edge Position] by using wide straight lines.
  1. In the Item Tab area, tap [Region setting].
  2. Use the Drawing tools to specify the measurement region.
    Region setting - "Detail" area
    To align with the measurement area and change the number of divisions, uncheck this.
    Region setting - "Detail" area
  3. In the figure setting area, tap [OK].
    The measurement region is registered and displayed in the Image Display area.
    Region setting - "Image display" area
  4. In the "Area divide" area, specify the number of divisions and their width.
    By default, the number of scan lines is 5 and the scan width is 5.
    Region setting - "Area divide" area
  5. The region is divided equally.

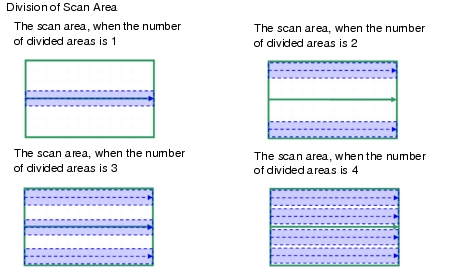

    Division of scan region
    Note
    • You can specify enable/disable for each divided region.Tapping a divided region displays the following screen.
      Region setting - Enable/Disable
