Processing Items List Manual
 Processing Item List > Display result > Display Last NG Image > NG Error Judgement (Display Last NG Image)

NG Error Judgement (Display Last NG Image)

Sets conditions for NG judgement.
  1. Tap [NG judgement] in the Item Tab area.
  2. Set the judgement mode in the "NG settings" area.
    NG error judgement - "NG save setting" area
    Setting item
    Set value
    [factory default]
    Description
    Judgement mode
    [One NG]
    The image is saved even if only one of the judgement criteria set using "Judgement expression" has a judgement of NG.
    All NG
    The image is saved if all of the judgement criteria set using "Judgement expression" have a judgement of NG.

Expression Settings

The measurement details used for NG judgement are set using an expressions.

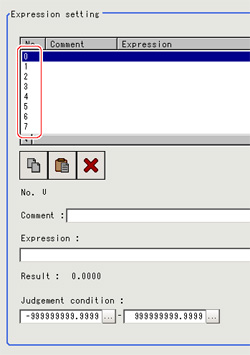

  1. Tap the "No." for setting the expression from the list in the "Expression setting" area
    The No. selected will be displayed below the list.
    NG error judgement - "Expression setting" area
  2. Tap […].
    NG error judgement - "Judgment operational expression" area

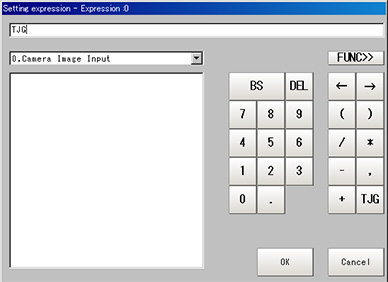

    The Setting Expression window is displayed.
  3. Set the judgement operational expression.
    NG error judgement - "Judgment operational expression" area
    Layout of Setting Expression Window
  4. After setting the expression, tap [OK].
    The expression is confirmed.
  5. Tap [...] for "Comment" and input an explanation of the expression as necessary.

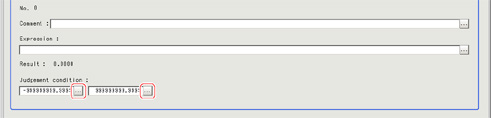

  6. Set up the judgement upper limit and the judgement lower limit for "Judgement condition".
    NG error judgement - "Expression setting" area
    Setting item
    Set value
    [Factory default]
    Description
    Judgement condition
    -999999999.9999 to 999999999.9999
    This is a judgement condition for the expression. Set upper and lower limits for judging as OK.
  7. Repeat the Steps1to6and set up the expression.
