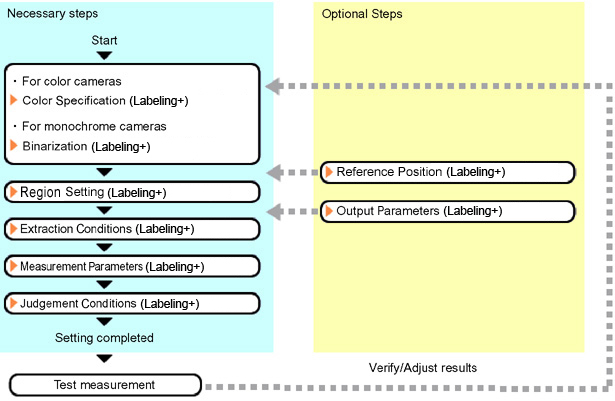

Color
(for color cameras only)

This item selects the color whose area and center of gravity are to be measured.Since the color hue, color saturation, and brightness can be selected, then fine-tuning can be performed to colors.
Color Specification (Labeling+)

Binary
(for monochrome cameras only)

This item specifies the binary level for converting 256-tone grayscale images input from the camera into binary images.
Converted white pixels are measured.Adjust the binary level so that the measurement object is converted to white pixels.
Binarization (Labeling+)

Region setting

This item is used to set up the measurement area.
While the input image can be measured as a whole, a quick and reliable measurement can be performed by set up the measured range.
Region Setting (Labeling+)

Ref. position

This item can be changed if necessary.Usually, the central position of the registered region is registered as the reference position.
Reference Position (Labeling+)

Extraction

Specify the feature to extract.
Extraction Conditions (Labeling+)

Measurement

Set the labeling conditions.Specify the labeling processing, number of labels and sorting conditions.
Measurement parameter can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Measurement Parameters (Labeling+)

Judgement

This item specifies the judgement condition for measurement results.
Judgement Conditions (Labeling+)

Output parameter

This item can be changed if necessary.Normally, the factory default value may be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Labeling+)
