Processing Items List Manual
Processing Item List > Measurement > Labeling+ > Judgement Conditions (Labeling+)Judgement Conditions (Labeling+)

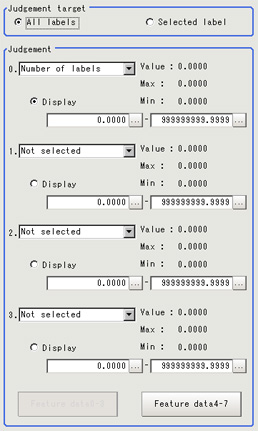

- In the Item Tab area, tap [Judgement].
- If necessary, specify a value for each item.To set feature quantities 4-7, tap the [Feature data4-7] button.
Setting itemSet value
[Factory default]Description- Judgement target
- All labels
- [Selected label]
Specify the labels to be targeted.
When "Selected label" is selected, only labels specified by number are judged.(However, when Judgement condition is Number of labels, it is not applied.)
When "All labels" is selected, all extracted labels are judged.- Judgement
Set up the judgement condition.- [Not selected]
- Number of labels
- Area
- Gravity X
- Gravity Y
- Elliptic axis angle
- Elliptic major axis
- Elliptic minor axis
- Elliptic ratio
- Rectangle width
- Rectangle height
- Rectangle X1
- Rectangle Y1
- Perimeter
- Circularity
- Fit rect major axis
- Fit rect minor axis
- Fit rect ratio
- Inscribed circle X
- Inscribed circle Y
- Inscribed circle R
- Circum. circle X
- Circum. circle Y
- Circum. circle R
- Number of holes
0.000 to 9999999.999Display radio buttons[Judgement 0]Specify the feature quantities displayed on the image.
