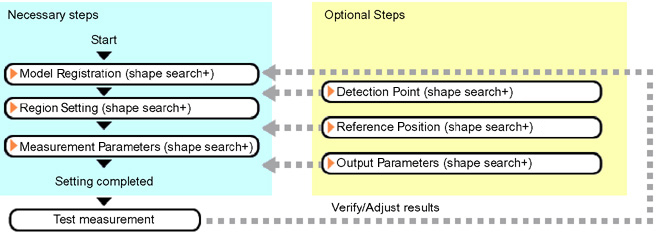

Settings Flow (Shape Search+)

Set up shape search+ according to the following steps.
ECM search - Operation flowModel RegistrationRegion SettingMeasurement ParametersDetection PointReference PositionOutput Parameters

List of Shape Search+ Items

Item name
Description
Model register
This item registers the pattern characteristic of the measurement image as a model.
Model parameter values can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Model Registration (Shape Search+)
Region setting
This item is used to set up the measurement area.
Restricting the range enables accurate measurement in a short period of time.
Region Setting (Shape Search+)
Detection point
This item can be changed if necessary.Specify a position in the model that should be used as the detection coordinates during measurement.Usually, the central position of the set model is registered as the detection coordinates.
Detection Point (Shape Search+)
Ref. position
This item can be changed if necessary.Usually, the central position of the registered region is registered as the reference position.
Reference Position (Shape Search+)
Measurement
This item specifies the judgement condition for measurement results.Specify the correlation value, sort condition, and label number.
Measurement parameter can be changed as needed to address unstable measurement results or to increase the processing speed.Normally, the factory default value will be used.
Measurement Parameters (Shape Search+)
Output parameter
This item can be changed if necessary.Normally, the factory default value may be used.
Use the output parameter to specify how to handle the coordinates.
Output Parameters (Shape Search+)
