Settings Flow (Camera Image Input)

To set camera image input, follow the steps below.

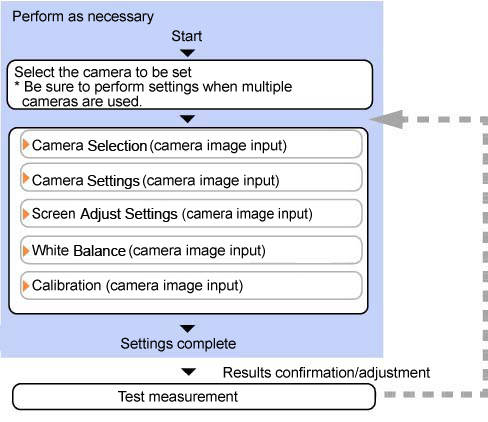

Camera Image Input - Operation flowScreen Adjust SettingsCamera SettingsWhite BalanceCalibrationCamera Selection

Camera Image Input Item List

Item
Description
Camera 0 to 3
Select the camera to be set.
Select camera
When multiple cameras are connected, select the camera to use for measurement.
Camera setting
Specify the camera settings such as the shutter speed or electronic flash.
Camera Settings (Camera Image Input)
Screen adjust
Adjust the lighting and the lens.
Screen Adjust Settings (Camera Image Input)
White balance
When using a color camera, adjust the white balance.
White Balance (Camera Image Input)
Calibration
Set when measurements (camera coordinate measurement values) are to be output using actual dimensions. Select the calibration setting method and generate the calibration parameters.
Calibration (Camera Image Input)
