Changing Judgement Conditions without Stopping Measurement

Using the simplified non-stop adjustment function makes it possible to change the judgement conditions of processing units of the currently displayed scene without stopping the measurement processing being executed.

Reference

The simplified non-stop adjustment function can only be used in RUN window normal mode. However, it cannot be used when the operation mode (FZ3-9/H9 only) is set to [Single-line High-speed mode] [Non-stop adjustment mode]. Also, it cannot be used in the ADJUST window or RUN window fast view mode.
If the Enter non-stop adj. button is not displayed, the button can be added with the system/controller/RUN window short cut setting.

In the "Control" area of the Main screen (RUN window), tap [Tool box].
Tap [Enter non-stop adj].
Transfers to simplified non-stop adjustment mode. "Enter simplified non-stop adj." is displayed at the upper part of the "Control" area flow.
Measurement will continue without stopping.

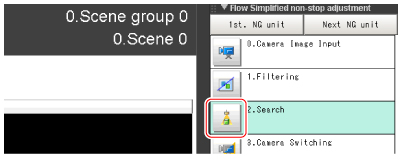

Tap the icon of the processing unit with the judgement condition to be adjusted.

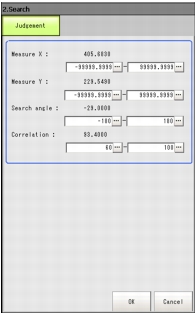

The window for the judgement conditions of the selected processing unit is displayed.
If you tap the icon of the processing unit that does not have setting item of "Judgement condition", Judgement window is not displayed.
Change the judgement conditions of each processing unit.
Tap [OK].
The Judgement window closes, and the screen returns to the Main screen.
The changed contents are shown in the displayed scene.
When changing judgement conditions for multiple processing units, repeat steps 3 to 5.
In the "Control" area of the Main screen, tap [Quit simplified non-stop adj.].
The simplified non-stop adjustment mode ends.
Reference
- If [Switch to ADJUST mode] is tapped while entering simplified non-stop adjustment, the simplified non-stop adjustment mode is automatically ended and the screen switches to the ADJUST window.
