Useful Functions for Operation

Remeasuring Saved Images

Images from when measurement, including test measurement, was performed can be saved.Remeasurement can be performed with saved images after conditions are adjusted in order to check whether the adjustment is appropriate.
The logging function is used for saving images.
Setting Logging Conditions [Logging Setting]
Images that can be remeasured include images saved in the controller and images saved in USB memory.
  1. In the Control area of the Main screen, tap [Test measurement].
  2. Tap [Select image].

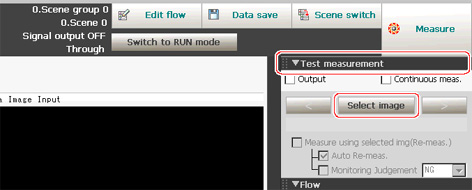

    Main screen
    The Select Image window is displayed.
  3. Tap [...] and select the file to display.

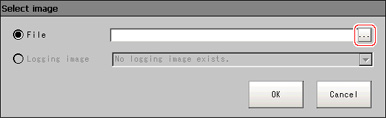

    Select Image window
    Setting item
    Description
    File
    Specify images saved in the USB memory or in the RAMDisk.
    Logging image
    Specify images that are logged in the controller memory.
  4. The selected image is displayed at the lower left of the FileExplorer screen.
    When there are multiple camera images in a file, as for a logging image when multiple cameras are connected, use the "<<" and ">>" buttons to switch images.
    Image Selection window
  5. Tap [OK].
    The path and file name of the image are displayed under [Select image].

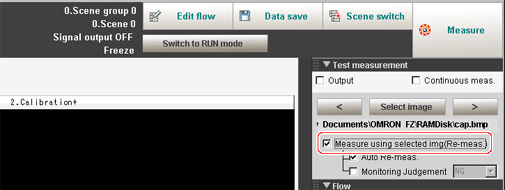

  6. Check "Measure using selected img (Re-meas.)".
    Main screen
  7. Tap [Measure] in the toolbar on the Main screen.
    Main screen
    Measurement of the selected image is performed.
    Note
    • About Auto Re-meas.
      Displayed images can be automatically remeasured by placing a check in "Auto Re-meas.".
    Important
    • When remeasuring an image with the controller, it is necessary to have a camera connected that is appropriate to the image size.For example, if the image file for remeasurement contains 2 megapixel images and a 0.3 megapixel camera is connected to the controller or if a camera is not connected, measurement will not be performed correctly due to a memory deficiency.Perform remeasurement after connecting a camera appropriate to the image size.
