Multi-line Random-trigger Mode

Use this mode if you want to measure 2 lines using 1 controller. Measurement can be performed independently on line 0 and line 1 in response to inputs from different cameras.

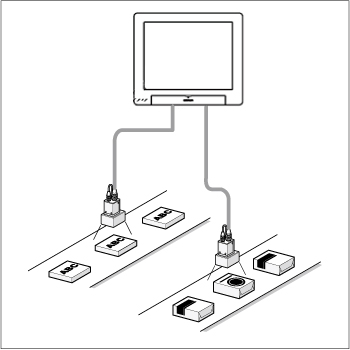

Overview of Multi-line Random-trigger Mode
You can switch the monitoring target between line 0 and line 1 using the Line button in the Image display setting area.
Image display setting area
The background color is different between line 0 and line 1.
Displayed image of line 0
Displayed image of line 1
4 cameras are recognized as follows.
Camera No.
Recognition in software
Camera 0
Camera 0 on line 0
Camera 1
Camera 0 on line 1
Camera 2
Camera 1 on line 0
Camera 3
Camera 1 on line 1
Important
  • If Ethernet is used, set a different port number for each line.
  • RS-232C/422 can be set at line 0 only.
  • If parallel communication is used, the I/O format changes.
    I/O Format (Parallel Interface)
  • Parallel communication can only be set at line 0. Line 1 uses the settings of line 0.
  • Date-time setting, language setting and operation mode setting can be set at line 0 only.
  • If STEP is input to line 0 and line 1 at exactly the same time, measurement on one side may be delayed (approximately by a time corresponding to the camera image input unit).
  • Error messages are the same. If an error occurs on either line, an error message is displayed.
  • If logging is performed for line 0 and line 1 at the same time, measurement may take a longer time.
  • User data of line 1 is saved in the controller.
